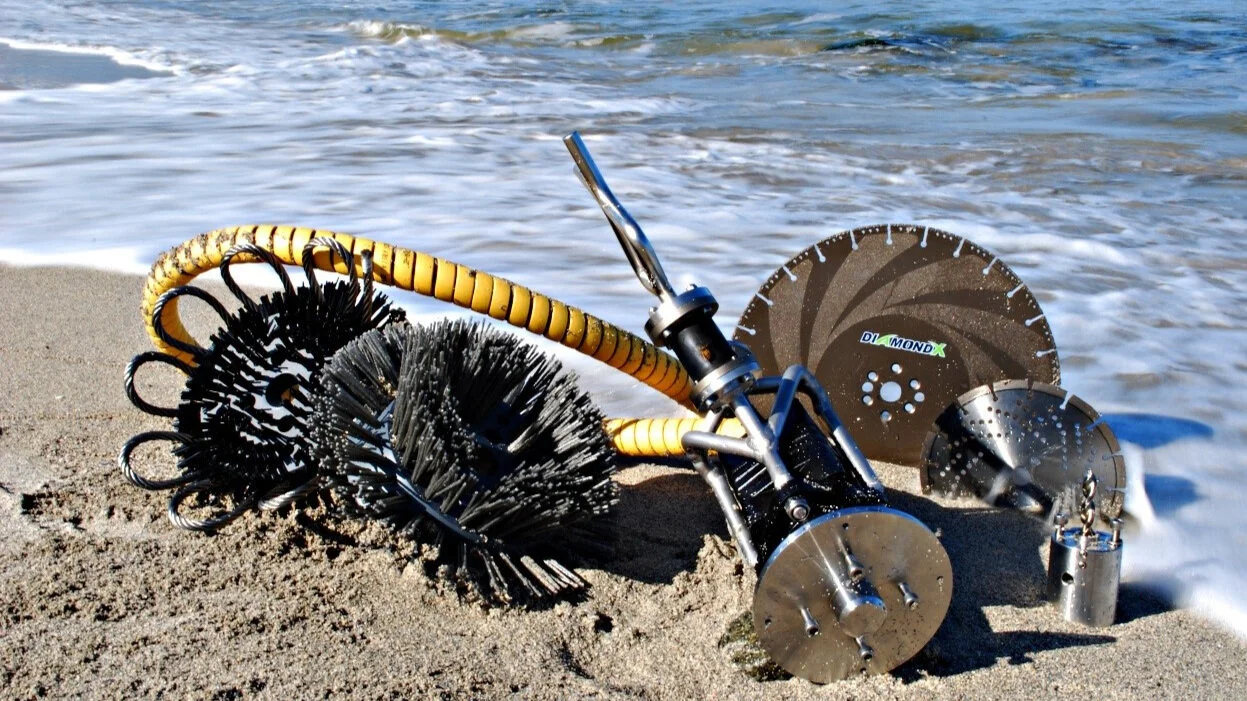

Saga HD Multi Tool

The Saga HD (Heavy Duty) Multi Tool, is an in-house designed, manufactured and patented and powerful hydraulic ROV tooling, making it possible to carry one tool with the option to do several tasks when offshore.

With everything fitted in one Pelicase on wheels, the tool is easily carried by one person, and transported to any mobilization.

Special precautions have been made to avoid oil spills, and the hydraulic hoses is pressure tested with certificate following the tool.

With the accessory included In the Pelicase, the tool is fitted with a powerful hydraulic motor and prepared for the following tasks:

  • Cleaning tool with standard, wire or steel brushes

  • Grinder, with various blade size

  • Drilling

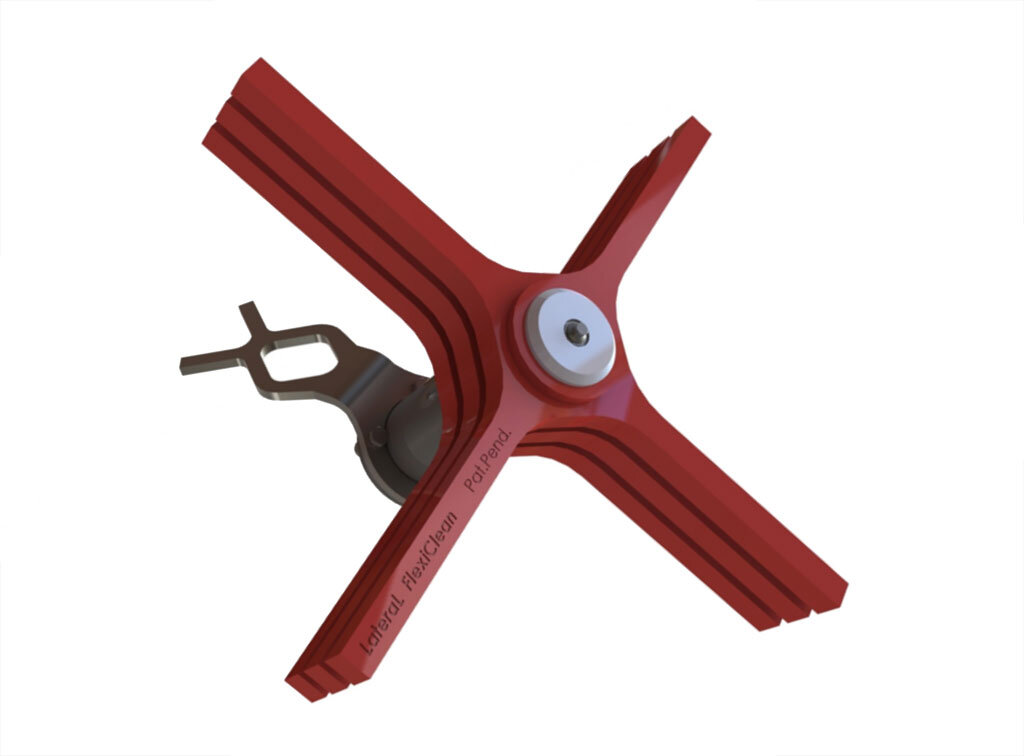

FlexiClean

FlexiClean is a highly efficient ROV-handeled cleaning tool that quickly removes marine growth and debris on subsea structures and equipment.

It rapidly and gently removes soft marine growth, mussels, barnacles and coral while leaving sensitive surfaces such as paint, plastic sheathing or even duct tape unharmed.

Max Hydraulic Inlet Pressure: 140 bar
Max Oil Flow:
60 l/min
Hydraulic Fluid Tellus:
22 or equal
Rotation:
Reversible / Bi-Directional
Hight (Carrying case):
390mm
Length (Carrying case):
490mm
Width (Carrying case):
160mm
Weight Tool/Case:
14Kg/16Kg



SAGA ROV DREDGER

Saga Subsea has several different dredgers in stock at all times. Dredgers can also be manufactured upon request.

SAGA 6” ROV DREDGER - 72M3/HR SW CAPACITY

SAGA 8” ROV DREDGER - 85M3/HR SW CAPACITY

SAGA 10” ROV DREDGER - ??M3/HR SW CAPACITY


WIRE ROPE CUTTER

WIRE ROPE CUTTER ICU 10 A 30


Gas Sampler

The Gas Sampler is designed to measure gas flow and also to bring back gas samples from a subsea leakage.
The sampler is hydraulically operated. The lower part of the funnel can be separated from the gas sampler, in order to get better access in confined spaces. The gas sampler is designed to be operated by a work class ROV.


Dynaset Waterjet 220/520

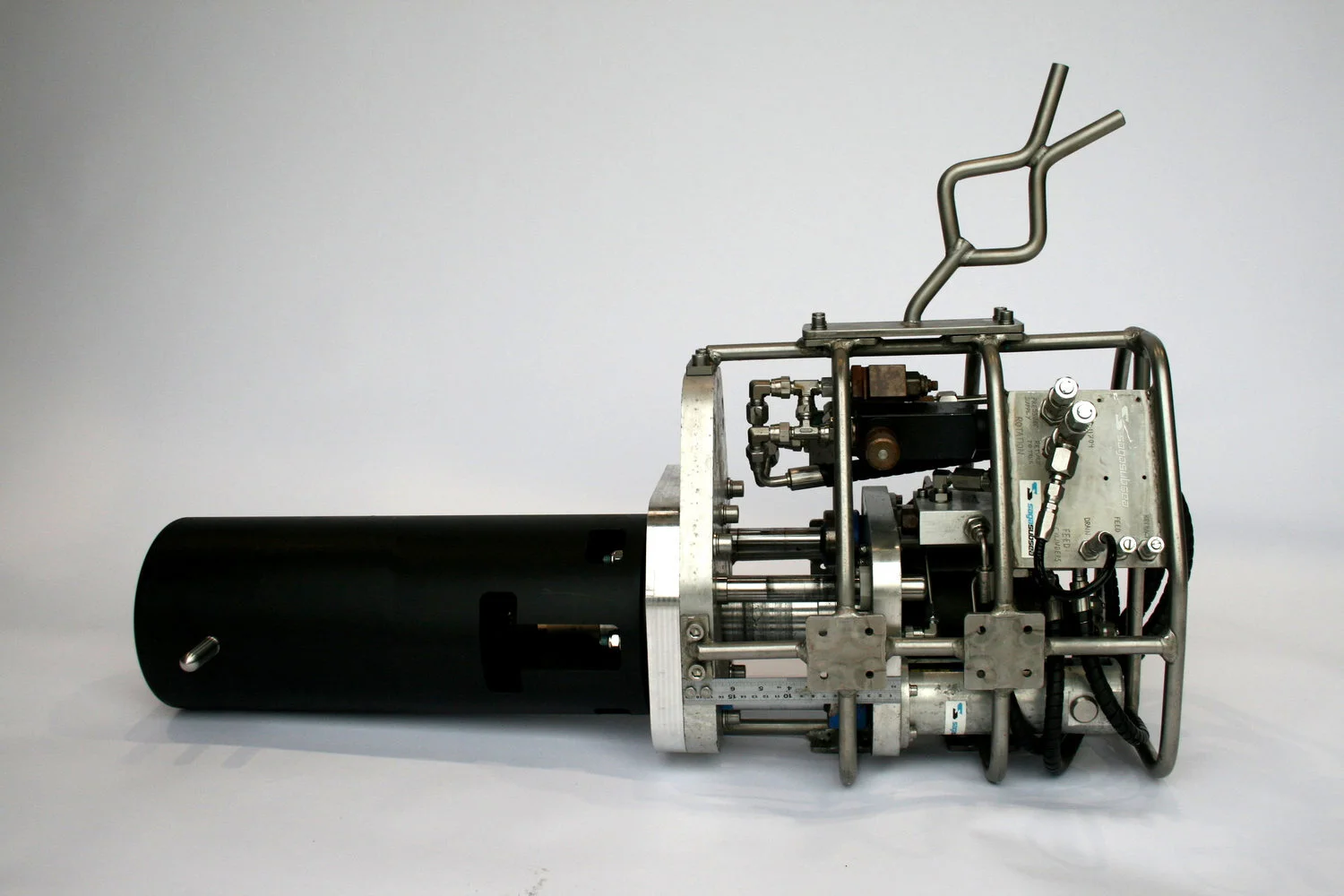

Stinger ROV Operated Drilling Tool

The Imenco Stinger ROV Operated Drilling Tool is a portable hydraulically operated drilling machine which can be operated by a work class ROV. It is designed for subsea drilling operations on a variety of applications and steel thicknesses.

Simple and reliable robust design

  • Simple in-situ setup, operation and retrieval by assistance of standard work class ROV.

  • Low maintenance with easily replaceable parts when necessary

  • Quick and simple change of drill bit

  • Interchangeable drill bits up to Ø 135 mm

  • Can be supplied with Suction Pad, Magnetic or Claw type-fixing brackets

  • Can be supplied with integrated Valve Pack for RPM and Feed control

  • Supplied with full documentation and instructions




SUBSEA GRINDER

saga senterdrill.jpg

Saga ROV Centerdrill

*HOLE SAWS AND CENTER DRILLS CAN BE PURCHASED UPON REQUEST

*Drilling Tool can be fitted with a various of sizes regarding hole saw and drills

For technical specifications, please request at: post@sagasubsea.no



HOT STAB AND RESPETICLER


MATTRESS INSTALLATION BEAM

The Saga Mattress Installation Beam is ideal for installation of seabed mattresses. It comes with a quick realse latch.

DIMENSONS: 6250MM X 590MM X 1400MM
SWL: 16 000 KGS
